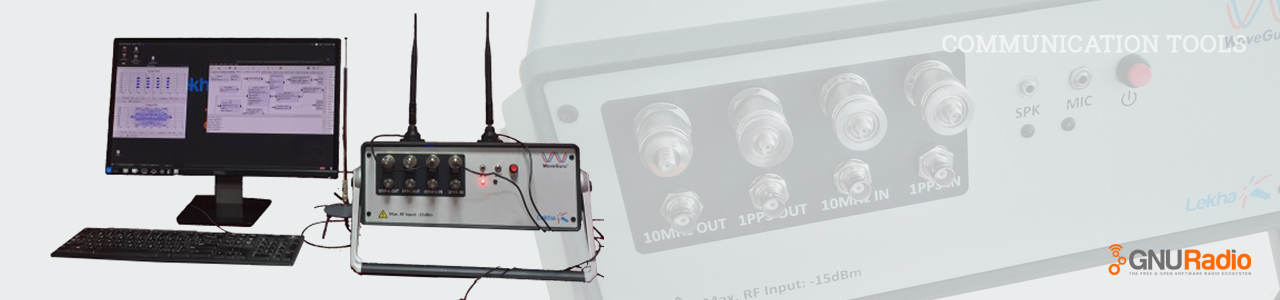

Integrated Wireless Communication introduce a platform for RF communication systems in order to provide a prior experience with the extensive development and deployment of latest wireless technologies by providing an exposure towards designing various blocks of radio communication system using software and implementing over the associated SDRs (Software Defined Radio) module. Depending upon interest of the user, this lab ensures a convenient platform to explore projects/applications related to advance wireless technologies (Ex: OFDM, 4G LTE, 5G, WiMAX etc.)

WaveGuru is an ideal tool for realization of networks starting from 2G to 5G and extending them to 5G concepts. Research fundamentally has always stopped at Matlab simulations in Academic institutes. SDR (Software Defined Radio) platforms have the mix of practical deployment scenarios and high performance computing platforms to scale the simulations to RF. This helps researchers to converge proposed solutions to overcome practical limitations or engineering problems. Universities can there by contribute immensely to disruptive innovation.

RF Board features:

  • Software tunable across wide frequency range (70 MHz to 6.0 GHz) with a channel bandwidth of v
  • Phase and frequency synchronization on both transmit and receive paths
  • 2 Tx / 2 Rx ports or 1 Tx / 1 Rx port
  • External Reference Clock source can be connected
  • AGC, Quadrature calibration and DC offset calibration
  • NF: 2.5dB @1GHz
  • ADC: Continuous time sigma-delta, 640MSPS
  • Digital Filters: 128 complex taps, decimation between 2 and 48
  • Gain: 1dB step size, 80dB analog range, 30dB digital range (post ADC scaling)
  • Max input power 0dBm
  • Supports up to 2 direct conversions RF receive channels
  • Fully integrated synthesizers (including loop filter)
  • Data path consists of digital filters, DAC and Modulators
  • Digital Filters: 128 complex taps, interpolation between 2 and 48
  • Gain: 0.25dB step size, 86dB range.
  • DAC: 320MSPS
  • Max out power 7.5dBm @2.4 GHz

Baseband Platform Features:

  • Core i7/i5
  • 4/8 GB of SDRAM
  • 500GB/1TB HDD
  • 2 USB 3.0 ports
  • 4 USB 2.0 ports
  • 10/100/1000 Ethernet Interface
  • USB-UART Interface
  • microSD Card Interface
  • PCIe Gen2 x4 Root Complex (x16 physical Slot)
  • SATA-III Interface
  • Ubuntu 14.0 LTS operating System

Wave Guru Support For:

  • GNU Radio
  • NI Labview
  • Open AIR interface
  • Open BTS

The WaveSmart 2x2 MIMOSDR, 47MHz to 6GHz frequency range, off-the-shelf USB 3.0 Software Defined Radio (SDR) that is easy and affordable for students and RF enthusiasts to explore wireless communications, yet provides a powerful waveform development platform expected by industry professionals.

Support is available for Linux, mac OS, and Windows. The libraries, utilities, firmware, and platform HDL are released under open source licenses, and schematics are available. The FPGA and USB 3.0 peripheral controller are programmable using vendor-supplied tools and SDKs that are available.


  • RF Performance
    • 47 MHz to 6 GHz frequency range
    • 2x2 MIMO, 61.44 MHz sampling rate
    • 56 MHz filtered bandwidth (IBW)
    • Automatic gain control (AGC)
    • Automatic IQ and DC offset correction
  • Processor
    • 200 MHz ARM926EJ-S processor

The Wave-Genie Active Learning Module is a tool that closes the relationship between theory and practical radio frequency activities of the user. It provides a personal portable lab that, when used with a host, can augment the learning that takes place in the classroom. A variety of software packages such as GRC provide an innovative graphical user interface (GUI), allowing intuitive usage and minimizing the learning curve, enabling students to learn faster, work smarter, and explore more.


  • Portable self-contained RF learning module
  • Cost-effective experimentation platform
  • Based on AD9363--Highly Integrated RF Agile Transceiver and Xilinx® Zynq Z-7010 FPGA
  • RF coverage from 325 MHz to 3.8 GHz
  • Up to 20 MHz of instantaneous bandwidth
  • Flexible rate, 12-bit ADC and DAC
  • One transmitter and one receiver, half or full duplex
  • GNU Radio sink and source blocks
  • USB 2.0 Powered Interface with Micro-USB 2.0 connector
  • High quality plastic enclosure

Lekha WaveGuru Nava – Hardware platform is an ideal platform for 5G Small cell, 5G CPE, 5G Fronthaul and several other communication and EW applications demanding wide band data transceiver and processing.

Lekha WaveGuru Nava – 5G Hardware platform board is a Xilinx RFSoC based SDR board capable of hosting multiple Waveforms. The on-board wideband and RF sampling ADC and DAC ensures that with minimal change in the RF front end circuit, several combinations of Transmit power, receive gain, Multiplexing schemes (TDD/ FDD), can be achieved.

The Platform solution comes in a combination of the RFSoC board and a Radio Front end (RFE) board. The two boards are connected through the LPAF Interconnect. The RFE board has the needed Balun circuits and the Gain stages to deliver 23dBm power per DAC port. The receive chain has a 18dB LNA stage.

The RFE board is available for 3.5GHz TDD operation.


Baseband Processing
Baseband Processor Xilinx RFSoC – XCZU28DR-2FSVG1517E
SPI NOR Flash 2Gbit for Uboot & kernel
SD Card 16 GB
SDRAM PS DDR4 4GB On-board ( 64 bit data )
PL DDR4 4GB On-board ( 64 bit data )
Ethernet GigE, 1 Port
USB USB 2.0, 1 Port
UART UART at RS232 Levels, 1 Port Via Micro AB USB
LED Power ON, Status
SFP+ 10G Optical Interface 4 Ports
RF Specifications
DAC Port 14 bit x 8 Data converters, 6.5GSPS, Carrier frequency upto 4GHz
ADC Port 12 bit x 8 Data converters, 4 GSPS, Carrier frequency upto 4GHz
Number of DAC Ports 8 Single ended RF Ports on SMA Connectors
Number of ADC Ports 8 Single ended RF Ports on SMA Connectors
Clocking Internal and External clock input
AFE Board TDD Operation
LPAF Interconnect
Transmit Gain ; 35dB
Receive Gain : 18dB (Absolute Max. RF Input = -22 dBm )
Power Supply 12 V DC @ 10A
Mechanical TBD
Environmental Operating 0 to 50 deg C
