(Helps in Study of Connectivity and Control Applications using High Performance 32bit ARM Microcontroller)
These processors are specifically used in portable devices like digital cameras, mobile phones, home networking modules and wireless communication technologies and other embedded systems projects due to the benefits, such as low power consumption, reasonable performance, etc.
The ARM cortex is a complicated microcontroller within the ARM family that has ARMv7 design. There are 3 subfamilies within the ARM cortex family :
- ARM Cortex Ax - series
- ARM-Cortex Mx - series
Cortex M4 Based Hardware Boards:
( Optimized for deterministic real time embedded processing and microcontroller applications )
The ARM® Cortex®-M processor family is a range of scalable, energy efficient and easy to use processors that meet the needs of tomorrow’s smart and connected embedded applications. The processors are supported by the world’s #1 embedded ecosystem and have already been shipped in tens of billions of devices. Cortex-M processors help developers deliver more features, in less time, at a lower cost, with versatile connectivity, comprehensive code reuse, standard security and state of the art energy efficiency.

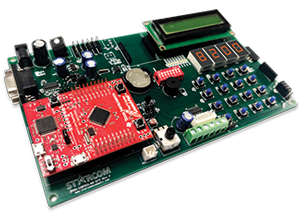

The ARM Cortex M4 Microcontroller Starter Kit from Starcom Information Technology Limited is a low-cost evaluation platform for ARM® Cortex™-M4F-based microcontrollers.
The Starter kit features a Tiva C Series TM4C123GXL Launch Pad with Booster Pck Ecosytem to access majority of peripherals like keypad, LDR, LED Display, LCD Display and more...
This Kit enables users to learn about how to program and develop custom applications using TIVA Microcontroller.
Features
- High Performance TM4C123GH6PM MCU:
- 80MHz 32-bit ARM Cortex-M4F CPU
- 256KB Flash, 32KB SRAM, 2KB EEPROM
- Two Controller Area Network (CAN) modules
- USB 2.0 Host/Device/OTG + PHY
- Dual 12-bit 2MSPS ADCs, motion control PWMs
- 8 UART, 6 I2C, 4 SPI
- On-board In-Circuit Debug Interface (ICDI)
- On Board ADC and DAC
- On Board 7 Segment LEDs Interface
- On Board Keypad and Buzzer
- On Board 16x2 Alphanumeric LCD Display
- Stepper Motor and DC Motor Interface
- On Board Temperature Sensor
- Interface for Zigbee Module, Bluetooth & WiFi,
- UART and RTC Interface
- EEPROM Interface
- Micro SD card Interface
What's Included..?
- ARM Cortex M4 Board
- Peripheral Interfacing Board
- Power Adapter
- Free User Manual
- RS 232 Cable
- Zigbee Module (Sold Separately)
- Bluetooth Module (Sold Separately)
Supported IDEs:
ARM - Keil /CCS / ENERGIA / IAR Embedded Workbench –ARM
